Red Laser Diode Module ANALOG DJ Disco Party Light Stage Beam Show

Product Categories

Elite everytronics Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Type : Laser Diode

Package Type : Through Hole

Packaging Details : DEPEND ON CUSTOMER'S REQUIREMENT

Delivery Time : 3-15 DAYS

Payment Terms : T/T,Western Union

Supply Ability : 3000 Piece/Pieces per Month

MOQ : 1 Piece/Pieces

Contact Now

1. Red laser module
2. TTL/Analog modulation
3. 12 month warranty

It's widely used in scientific research, laser printing, spectrum analysis, laser show, etc.

Red laser specifications:

Wavelength(nm)	635NM
Laser output power(mw)	>500MW
Transverse mode	Near TM00
Operating mode	CW
Power stability(rms,8hours)	<;;5%
Warm-up time(minutes)	<;;5
Aperture Position (mm)	25
Beam divergence, full angel(mrad)	<;;2.5
Beam diameter at the aperture(mm)	~5*8
Polarization ratio	>50:1
Operating temperature(^oC)	10~35
External Modulation	Analoggue
Modulating Repetition	10KHz Analogue
Expected lifetime(hours)	10000

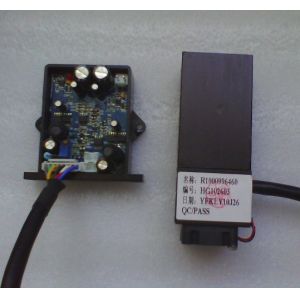

Red Laser Diode Module ANALOG DJ Disco Party Light Stage Beam Show Images
